Home > Product Center

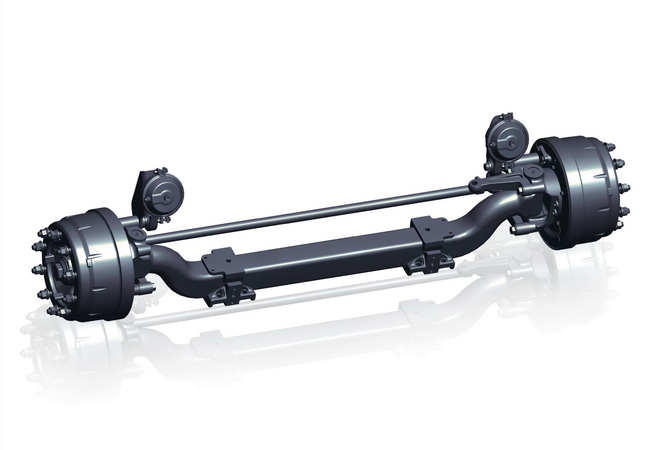

XNF-06 Non-Drive Steering Axle
Introduction:

? High capacity hallow beam
? Premium seal design
? Robust knuckle and arms
? Large range of FUWA drum brakes
? Several configurations and sizes
? Optimized geometry for better handleability and tire life
? Available with ABS and automatic slack adjuster
? Strong bolted joints with special self locking bolts

Technical Parameters Other

Load Capacity

Gross Axle Weight(On-Highway Application):6500Kg

Track(Other options are possible upon request)

2059mm

Mounting Center

750~880mm

King Pin Intersection(Other options are possible upon request)

1780mm

Beam

Box Section:124x116mm
Wall Thickness:10mm
Drop:88mm

Maximum Steering Angle(Inner wheel)

45°

King Pin Inclination

Brakes(Other options are possible upon request)

410x180mm、410x150mm、420x180mm

Wheel Mounting(Other options are possible upon request)

Φ335mm-10 studs M22x1.5
