Home > Product Center

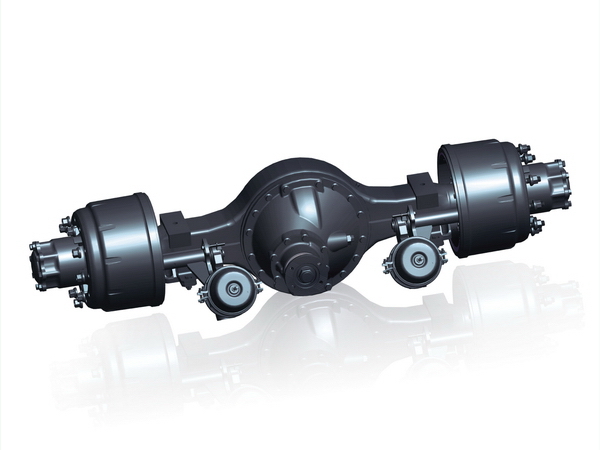

XSS-11-510 Single Reduction Single Axle
Introduction:

? High capacity hypoid gears
? Premium seal design
? High quality Welded housing
? Large range of FUWA drum brakes
? Precision forged differential gears
? Several configurations and sizes
? Rolled splines and threads
? Available with ABS and automatic slack adjuster
? Strong bolted joints with special self locking bolts

Technical Parameters Other

Load Capacity

Gross Axle Weight:11000Kg
Gross Combined Weight(On-Highway Application):60000Kg

Track(Other options are possible upon request)

1860mm(STD)、1830mm(Optional)

Mounting Center

950~1040mm

Hypoid Gear

Master Diameter:Φ510mm
Face Width:88mm
Ratios(Other options are possible upon request):3.08、3.17、3.38、3.70、4.11、4.22、4.44、4.62、4.75、5.29、6.17、6.83

Housing

Box Section:160x160mm
Wall Thickness:14mm
Friction welding:Φ150mm

Axle Shaft

Body Diameter:Φ57.5mm
Spline:Φ59.6mm-46 teeth

Brake(Other options are possible upon request)

410x220mm、410x200mm、410x180mm

Wheel Mounting(Other options are possible upon request)

Φ335mm-10 studs M22x1.5
