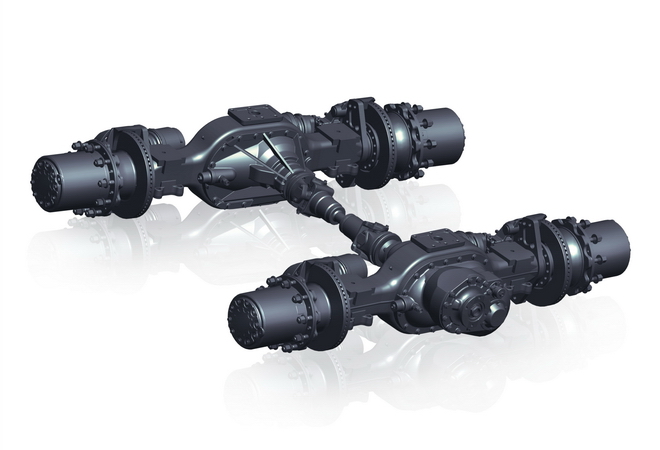

XPT-26-330ADB Single Reduction Tandem Axle with Air Disc Brack
Introduction:

? High capacity spiral gears and planetary gears
? Premium seal design
? High quality Welded housing
? Air Disc Brake 22.5″
? Precision forged differential gears
? Several configurations and sizes
? Rolled splines and threads
? Available with ABS
? Strong bolted joints with special self locking bolts

Technical Parameters Other

Load Capacity

Gross Axle Weight:26000Kg
Gross Combined Weight(On-Highway Application):130000Kg

Track(Other options are possible upon request)

1836mm(STD)、1866mm(Optional)

Mounting Center

950~1040mm

Spiral Gear

Master Diameter:Φ315mm
Face Width:56mm
Ratios(Other options are possible upon request):3.08、3.17、3.38、3.70、4.11、4.22、4.44、4.62、4.75、5.29、6.17、6.83

Housing

Box Section:158x145mm
Wall Thickness:16mm
Friction welding:Φ150mm

Axle Shaft

Body Diameter:Φ48.0mm
Spline:Φ53.3mm-41 teeth

Brake(Other options are possible upon request)

22.5″ADB

Wheel Mounting(Other options are possible upon request)

Φ335mm-10 studs M22x1.5
